10-Outlet Surge Protector, 8 ft. Cord with Right-Angle Plug, 2395 Joules, Tel/DSL Protection, Black

(0) No Reviews yet
$47.20
SKU: TRP-TLP1008TEL
MANUFACTURER: Tripp Lite
MPN: TLP1008TEL
NOTE: Return Restrictions May Apply

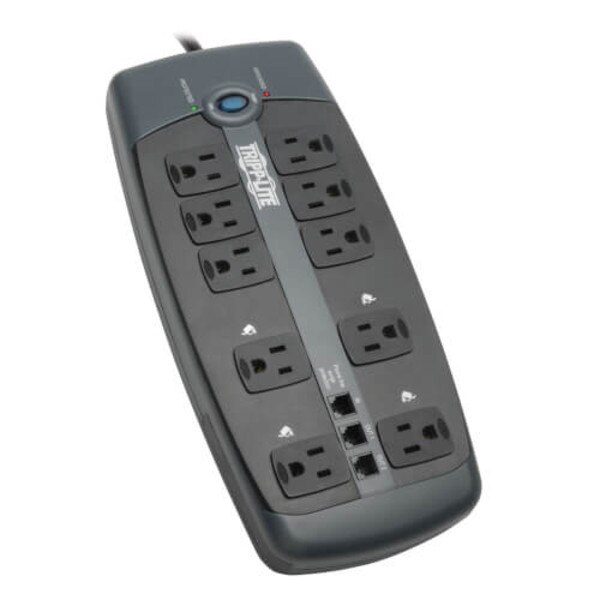

TLP1008TEL Protect It!® 10-Outlet Surge Protector features a surge protection rating of 2395 joules to defend your sensitive electronic components against even the strongest surges and spikes.


Because residential power outlets have three wires—hot line (H), neutral (N) and ground (G)—the TLP1008TEL protects all three, covering the two protection modes: full normal mode (H-N) and common mode (N-G/H-G). It also filters out electromagnetic interference (EMI) and radio frequency interference (RFI) that can disrupt your electronics and inflict hardware damage or data loss.

Your devices plug into 10 NEMA 5-15R outlets, four of which are widely spaced to accept bulky transformers without blocking adjacent outlets. Sliding safety covers block accidental contact with unused outlets. RJ11 jacks allow connection of telephone/fax/modem equipment, which is also protected from surges.

An integrated 15A circuit breaker protects all outlets and shuts down connected equipment in case of overload. Diagnostic LEDs confirm your wall outlet is properly grounded and your connected equipment is protected.

The eight-foot AC power cord allows the TLP1008TEL to reach distant outlets, while its right-angle NEMA 5-15P plug allows furniture and equipment to be placed flush against the wall to save space in your workstation. Keyhole slots incorporated into the bottom panel provide convenient wall or desk mounting options for the black plastic housing.

Features:
2395-Joule Surge Protection for Home or Office Electronics
  • Protects your computer, printer, scanner, router, modem and other small home electronics against even the strongest surges and spikes
  • Recommended for any desktop, network or home electronics application requiring AC line protection
  • Full normal mode (H-N) and common mode (N-G/H-G) line surge suppression
  • Filters out disruptive EMI/RFI line noise that can cause equipment damage or data loss
  • Exceeds IEEE 587 Category A and B surge suppression specifications

10 Outlets Accept Wide Range of Electronic Devices
  • 10 NEMA 5-15R AC outlets accept most computers and peripherals
  • 4 widely spaced outlets accommodate bulky transformers without blocking other outlets
  • Sliding safety covers block accidental contact with unused outlets

Telephone/DSL Protection
  • RJ11 jacks (1 input/2 output) protect phone/fax/modem equipment from surges and spikes
  • Built-in splitter protects 2 devices sharing one line
  • 6 ft. RJ11 telephone cable included

Premium Safety Features
  • On/off switch provides one-touch control over connected equipment
  • Automatic shutoff permanently cuts power to outlets if protection circuit is incapacitated, preventing equipment damage and indicating replacement is required
  • Integrated 15A circuit breaker shuts down outlets in case of power overload
  • Diagnostic LEDs confirm grounding and protection status at a glance
  • Conforms to current UL 1449 3rd Edition safety standards

Fits Effortlessly Into Your Workstation
  • 8 ft. AC power cord with right-angle NEMA 5-15P plug allows furniture and equipment to be placed flush against the wall
  • Keyhole slots on bottom panel provide convenient wall or desk mounting options
  • Black plastic housing designed for long life
TLP1008TEL Protect It! 10-Outlet Surge Protector, Black Housing
RJ11 telephone cable, 6 ft.
Owner’s manual
OVERVIEW
UPC Code:
037332119063

OUTPUT
Frequency Compatibility:
50 / 60 Hz
Output (Watts): 1800
Output Receptacles: (10) 5-15R
Circuit Breaker (amps): 15
Overload Protection: 15A resettable circuit breaker
Transformer Accommodation: (8) Yes
Outlet Orientation: Two rows of outlets, including 4 widely spaced for transformers
Right-Angle Outlets: No

INPUT
Nominal Input Voltage(s) Supported:
120V AC
Recommended Electrical Service: 120V (110-125V)
Input Cord Gauge Type: 14 gauge; SJT
Voltage Compatibility (VAC): 120
Maximum Surge Amps: 120000
Input Plug Type: NEMA 5-15P
Input Cord Length (ft.): 8
Right-Angle Plug: Yes
Integrated Cord Clip: No

USER INTERFACE, ALERTS & CONTROLS
Diagnostic LED(s):
Yes
Switches: Combination AC circuit breaker and two-position on/off power switch
Diagnostic LED Details: Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status

SURGE / NOISE SUPPRESSION
AC Suppression Joule Rating:
2395
AC Suppression Response Time: < 1 ns
Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
Clamping Voltage (RMS): 150
UL1449 Let Through Rating: 400V - UL Verified
EMI / RFI Filtering: Up to 40 dB
Auto Shut-Off: Yes

DATALINE SURGE SUPPRESSION
Telephone/DSL Protection:
Yes
Telephone/DSL Protection Details: 1 line
Cable (Coax) Protection: No
Network (Ethernet) Protection: No

PHYSICAL
Anti-Microbial Protected:
No
Color: Black
Color (AC Line Cord): Black
Housing Color: Black
Integrated Keyhole Mounting Slots: Yes
Keyhole Slot Mounting Measurement (Center to Center): 108mm
Material of Construction: Plastic
Outlets Measurement (Center to Center): Between Standard Outlets = 28.4mm; Between Standard and Transformer Outlets = 56.8mm
Receptacle Color: Black
Unit Dimensions (hwd / in.): 12 x 5.25 x 2
Unit Weight (lbs.): 2

CERTIFICATIONS
UL1449 3rd Edition (AC Suppression):
UL1449 3rd Edition
UL1363 (Power Tap): UL1363
UL497A (Communications): UL497A
FCC Part 68 (Communications): FCC Part 68
Canada: cUL
Industry Canada (Communications): Industry Canada
Approvals: Exceeds IEEE 587 category A&B specifications

WARRANTY
Product Warranty Period (Worldwide):
Lifetime limited warranty
