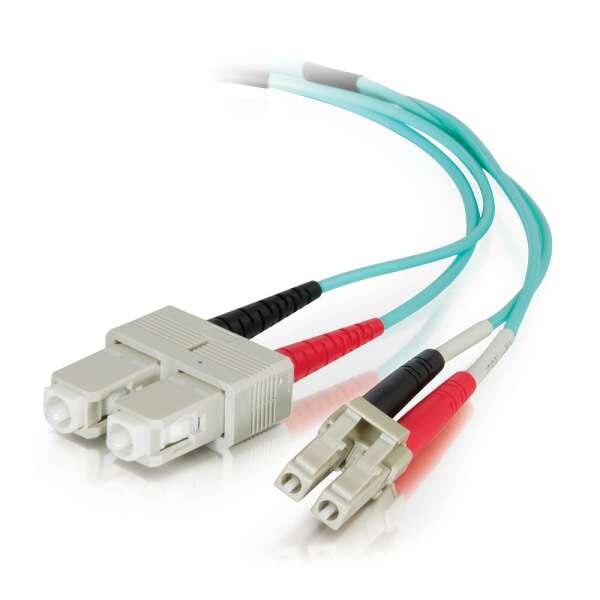

2m LC-SC 50/125 MM OM4 Fiber Cable

(0) No Reviews yet
$36.99
SKU: C2G-01009
MANUFACTURER: C2G
MPN: 01009
PRODUCT HIGHLIGHTS:
  • Constructed to support OM4 transmission standards
  • Multimode fiber construction - 50/125 diameter core and cladding
  • Support for 10 Gigabit and 40 Gigabit Ethernet communication
NOTE: Non-returnable
This OM4 Duplex Multimode Fiber Optic Cable is ideal for connecting 40GBase BiDi 10GBaseSR, SFP+ and QSFP+ transceivers for 40 and 10 Gigabit network connections. This cable provides backward compatibility with existing 50/125 equipment and the performance headroom required to support LED and VCSEL laser light sources, and 40 or 10 gigabit Ethernet applications in a datacenter or wiring closet.
Color: Aqua
Length: 2.00 Meter
Jacket Rating: Standard Non-Rated
UPC: 757120010098
Warranty: Lifetime
Vendor: C2G
Electrical Characteristics
  • Fiber Code - T
  • Performance Option Code - 90
  • Optical Fiber Type - 50 Multimode
  • ISO/IEC 11801 Nomenclature – OM4
  • Wavelength (nm) - 850/1300
  • Maximum Attenuation (dB/km) - 3.0/1.0
  • Minimum Over Filled Launch (OFL) - 1500/500 MHz km
  • Minimum Effective Modal - 4700/— (MHz km)
  • Serial 1 Gigabit Ethernet Distance (m) - 1000/600
  • Serial 10 Gigabit Ethernet Distance (m) - 550/—
Physical Characteristics
  • Fiber Count - 2
  • Nominal Weight kg/km (lb/1000ft) - 3.4 (2.3)
  • Nominal Outside Diameter mm (in) - 2.0 (0.08)
  • Minimum Bend Radius Loaded cm (in) - 3.0 (1.2)
  • Minimum Bend Radius Installed cm (in) - 1.0 (0.4)
  • Maximum Tensile Loads Short-Term N (lbf) - 220 (48)
  • Maximum Tensile Loads Long-Term N (lbf) - 66 (15)
  • Storage Temperature - -40°C to 70°C
  • Installation Temperature - 0°C to 60°C
  • Operation Temperature - 0°C to 70°C
  • Approvals - NEC, OFNP, CSA FT-6, ICEA S-83-596
