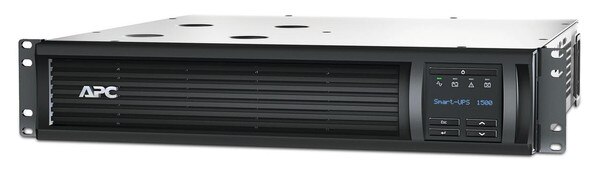

APC Smart-UPS 1500VA LCD RM 2U 120V

(0) No Reviews yet
$1,530.00
SKU: APC-SMT1500RM2UNC
MANUFACTURER: APC
MPN: SMT1500RM2UNC
NOTE: Return Restrictions May Apply

APC Smart-UPS 1500VA LCD RM 2U 120V with Network Card


Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Cold-start capable
Provides temporary battery power when the utility power is out.

Energy meter
Provides actual kilowatt hours of usage for energy conscious users.

High online efficiency
Reduces utility costs, generates less heat.

Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Preinstalled network management card
Provides for remote management and control of the UPS over a network out of the box.

Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

SmartSlot
Customize UPS capabilities with management cards.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

This product is non-returnable. Click Here for return policy information
CD with software
Documentation CD
Installation guide
Rack Mounting support rails
USB cable
Output
Output power capacity: 1.0kWatts / 1.44kVA
Max Configurable Power (Watts): 1.0kWatts / 1.44kVA
Nominal Output Voltage: 120V
Output Voltage Distortion: Less than 5%
Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
Topology: Line Interactive
Waveform type: Sine wave
Output Connections: (6) NEMA 5-15R (Battery Backup)
Transfer Time: 4ms typical: 8ms maximum

Input
Nominal Input Voltage: 120V
Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections: NEMA 5-15P
Cord Length: 8ft (2.44meters)
Input voltage range for main operations: 82 - 144V

Batteries & Runtime
Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte, leakproof
Typical recharge time: 3hour(s)
Replacement Battery: APCRBC133
Expected Battery Life (years): 4 - 6
RBC Quantity: 1

Communications & Management
Interface Port(s): RJ-45 10/100 Base-T, RJ-45 Serial, SmartSlot, USB
Pre-Installed SmartSlot™ Cards: AP9631
Control panel: Multi-function LCD status and control console
Audible Alarm: Alarm when on battery, distinctive low battery alarm, configurable delays
Emergency Power Off (EPO): Optional

Surge Protection and Filtering
Surge energy rating: 459Joules
Filtering: Full time multi-pole noise filtering, 0.3% IEEE surge let-through, zero clamping response time, meets UL 1449

Physical
Maximum Height: 3.5inches (89MM, 8.9CM)
Maximum Width: 17.0inches (432MM, 43.2CM)
Maximum Depth: 18.0inches (457MM, 45.7CM)
Rack Height: 2U
Color: Black
Environmental
Operating Temperature:
32 - 104 °F (0 - 40 °C)
Operating Relative Humidity: 0 - 95 %
Operating Elevation: 0-10000ft (0-3000meters)
Storage Temperature: -15 - 45 °C
Storage Relative Humidity: 0 - 95 %
Storage Elevation: 0-50000ft (0-15000meters)
Audible noise at 1 meter from surface of unit: 46.0dBA
Online thermal dissipation: 90.0BTU/hr

Conformance
Approvals:
CSA, FCC Part 15 Class A, UL 1778
Standard warranty: 3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status
RoHS:
Compliant
REACH: Contains No SVHCs
Battery Directive: Compliant
Proposition 65 Warning
