CyberData SIP Talk-Back Speaker

(0)No Reviews yet
SKU: CYD-011398
MPN: 011398
NOTE: Return Restrictions May Apply

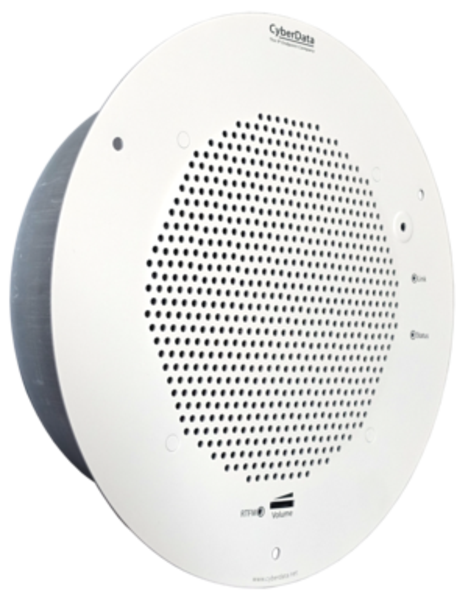

011398 SIP Talk-Back Speaker


CyberData's SIP Talk-Back Speaker enables full-duplex two-way conversations in settings such as classrooms, offices, medical facilities and clinics. When used with the Remote Call Button, calls to a predetermined extension can be initiated from the room with the speaker. Alternatively, a call can be placed to the speaker to initiate either a page or two-way conversation.

The SIP Talk-Back Speaker easily connects into local area networks with a single CAT5/6 cable from your PoE switch. Its small footprint allows the speaker to be mounted almost anywhere with multiple mounting options available.

CyberData has maintained one of the most comprehensive lists of IP PBX servers certified to work with CyberData VoIP Products

  • Full-duplex audio with configurable echo cancelling
  • Adaptive half duplex audio with configurable VOX (Voice Operated Switch) settings
  • Half duplex push to talk audio from the phone side using the phone's keypad or from the speaker side using CyberData's Remote Call Button
  • Audio health check to verify hardware performance that can be scheduled or launched manually
  • Supports a Monitor Mode

Click here for return policy information.

Ethernet I/F:10/100 Mbps
Protocol:SIP RFC 3261 Compatible
Power Input:PoE 802.3af/802.3at compliant or 24VDC @ 1A Auxiliary Power Supply (not included)
Audio Output:802.3af: 103 dB @ 1 meter
802.3at: 105 dB @ 1 meter
On-Board Relay:1A @ 30 VDC
Payload Types:G.711 a-law, G.711 µ-law, G.722 and G.729
Network Security:TLS/SSL 1.2 and SRTP
Operating Range:Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F)
Humidity: 5-95%, non-condensing
Storage Temperature:-40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F)
Storage Altitude:Up to 15,000 ft. (4573 m)
Dimensions*:9 in. [228.6 mm] Grill Diameter
7.25 in. [184.2 mm] Can Diameter
2.4 in. [60.96 mm] Can Depth
Weight:3.0 lbs. [1.36 kg]
Boxed Weight:4.0 lbs. [1.81 kg]
Compliance:CE; EMC Directive - Class A EN 55032 & EN 55024, LV Safety Directive- EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant
Warranty:2 Year Limited
Part Number/Color:011398/RAL 9003 (Signal White)
  • Simultaneous SIP and multicast
  • Paging prioritization
  • User-uploadable ring and alert tones
  • Support for security code to prevent unwanted SIP calls
  • Can receive pages directly from Poly phones as well as other devices that can send standard multicast
  • Loud/Night Ringer function - second SIP extension
  • Support for 10 multicast paging groups

  • Can drive one external analog speaker for greater coverage
  • DTMF-controlled relay
  • Line-out connection
  • Network and manual speaker volume control

  • TLS 1.2 and SRTP enhanced security for IP Endpoints in a local or cloud-based environment
  • Autoprovisioning via HTTP, HTTPS, or TFTP
  • HTTPS or HTTP web based configuration. HTTPS is enabled by default.
  • 802.11q VLAN tagging
  • Configurable event generation for device health and status monitoring
  • Web-based upgradeable firmware
  • Support for multiple SIP servers for redundancy
