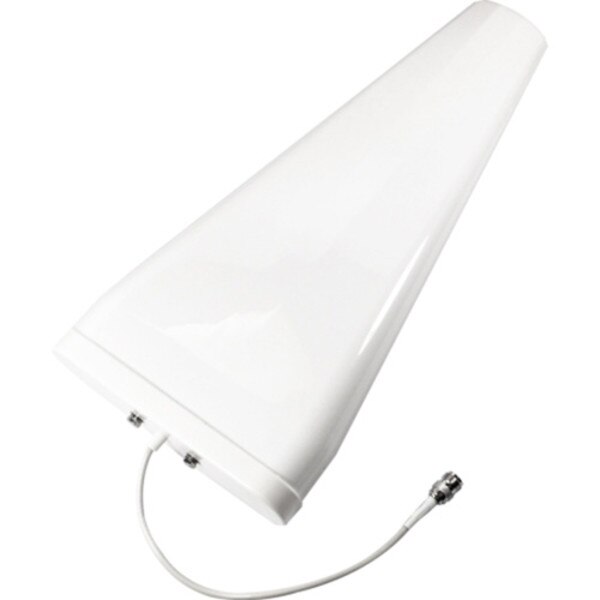

SureCall Outdoor Yagi Antenna
Outdoor Yagi Antenna
Wide Band High-Gain Directional Antenna
Features
- F-Female connector
- 8 dBi gain
- 75 Ohm
- Wide band: 2G, 3G & 4G LTE (698 - 2700 MHz)
- Includes mounting hardware
- Connects to booster with SC-RG6 or SC-RG11 cable (sold separately)
Wide band high-gain directional 75 Ohm antenna with F-Female connector designed for SureCall in-building cell phone signal boosters.
Click here for return policy information.
Part Number: SC-231W
Frequency: 698-806 / 806-960 / 1710-2700 MHz
Input Impedance: 75 Ohm
Antenna Gain: 8 dBi
VSWR: ≤2.0
Polarization Type: Vertical
Signal Pattern: Directional
Maximun Power: 50 Watt
Connector: F-Female
Diameter: Φ40~50
Beamwidth: E50 H85 / E60 H85 / E50 H60
Color: White
Mount: Mounts on pipe up to 2" in diameter
Dimensions: 17.3" x 8" x 1.45"
Weight: 2 lb 4 oz
Operating Humidity: ≤ 95%
Operating Temperature: -40° F to +140° F
Frequency: 698-806 / 806-960 / 1710-2700 MHz
Input Impedance: 75 Ohm
Antenna Gain: 8 dBi
VSWR: ≤2.0
Polarization Type: Vertical
Signal Pattern: Directional
Maximun Power: 50 Watt
Connector: F-Female
Diameter: Φ40~50
Beamwidth: E50 H85 / E60 H85 / E50 H60
Color: White
Mount: Mounts on pipe up to 2" in diameter
Dimensions: 17.3" x 8" x 1.45"
Weight: 2 lb 4 oz
Operating Humidity: ≤ 95%
Operating Temperature: -40° F to +140° F
