Logitech Rally Bar - Graphite

(0)No Reviews yet
$3,999.00
SKU: LOG-960-001308
MANUFACTURER: Logitech
MPN: 960-001308
PRODUCT HIGHLIGHTS:
  • USB Plug and Play
  • All-in-One Design
  • Streamlined, Flexible Installs
  • Ultra-HD Video
  • Adaptive Beamforming Mic Array
  • See Everyone Clearly
  • Compatibility: Certified for Zoom and MS Teams, USB
NOTE: Return Restrictions May Apply
Back

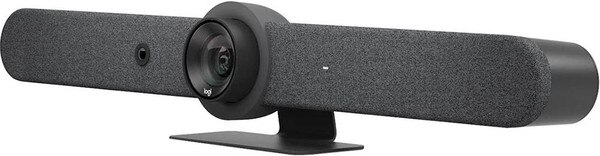

Logitech Rally Bar - Graphite

All-in-One Video Bar for Midsize Rooms


DESCRIPTION:

Logitech Rally Bar sets a new standard for video meetings in midsize rooms, with expansion options for larger groups and settings.


It’s remarkably simple to use, manage, and deploy at scale, delivering cinema-quality video and audio in a sleek, all-in-one form factor. Plug and play Rally Bar with any PC or Mac, or leverage the built-in compute to run video conferencing applications directly on the device.


Rally Bar features a multi-element lens assembly, powerful low distortion speakers, and an advanced mic system to create meeting experiences that sound as good as they look. A dedicated AI camera amplifies RightSight auto-framing and delivers insights about room usage directly to the Logitech Sync dashboard. Upgrade your video collaboration with Rally Bar.


Rally Bar delivers a powerful all-in-one video conferencing experience, featuring brilliant optics, automated PTZ, and high performance audio for midsize meeting rooms. With Rally Bar, video meetings can be just as natural and productive as face-to-face collaboration.


FEATURES:
  • Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
  • Zoom: 15X HD zoom (5X optical, 3X digital available with upcoming software update)
  • Diagonal Field of View: 90°
  • Add-on Mics: Supports up to 3 additional Rally Mic Pods for larger conference rooms
  • One-Touch Join - tap to join meetings
  • Ultra-HD Video
  • Expansive Room Coverage
Back
Rally Bar, Power supply, AC power cord, HDMI cable, USB cable, Remote control,Lens caps for main camera and AI Viewfinder, User documentation
Back
CERTIFICATIONS & COMPATIBILITY:
  • Certifications: Zoom™ Certified, Certified for Microsoft Teams as a USB device. Contact the manufacturer for additional information on pending and granted certifications.
  • Compatibility: Plug and play USB connectivity with virtually any video conferencing application
  • Appliance Mode: Supports compatible video conferencing software in appliance mode (no PC required), including Zoom Rooms Appliances. Certification pending for Microsoft Teams Rooms on Android and additional video conferencing platforms.
GENERAL:
  • Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform
  • Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
  • Device Management: Logitech Sync
  • Displays Supported: 2
  • Display Resolution: Up to 4k
CAMERA:
  • Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
  • Pan: Motorize ±25°
  • Tilt: Motorized ±15°
  • Zoom: 15X HD zoom (5X optical, 3X digital available with upcoming software update)
  • Diagonal Field of View: 90°
  • Horizontal Field of View: 82.1°
  • Vertical Field of View: 52.2°
  • Total Room Coverage: 132.1° Horizontal x 82.2° Vertical
SPEAKERS:
  • Drivers: 2x 70mm / 2.7 in
  • Output: 90dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
  • Sensitivity: 90+/-3dB SPL at 1W, ½ meter
  • THD: 1kHz < 2%
  • Speaker Sampling Rate: 48 kHz
MICROPHONES:
  • Frequency Response: 90Hz – 16kHz
  • Sensitivity: >-36dBFS +/-1dB @ 1Pa
  • Microphone Data Rate Output: 48 kHz
  • Pickup Range: 4.5m / 15 ft
  • Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
  • Audio Processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
  • Noise Suppression: AI filter
  • Add-on Mics: Supports up to 3 additional Rally Mic Pods for larger conference rooms
INTERFACES:
  • HDMI Out: 2
  • HDMI In: 1
  • USB 3.0: 3x Type A, 1x Type C
  • Network: 10/100/1G Ethernet
  • WiFi: 802.11a/b/g/n/ac (MIMO)
  • External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
  • Remote Control: Bluetooth® Low Energy
POWER & CABLES:
  • Power Supply: Auto-sensing
  • Operating Voltage/Power: 100-240V, 19V, 4.74A
  • Power Supply Dimensions: 127mm x 51mm x 30mm
  • DC Cable: 1.5m / 4.9 ft
  • AC Cable: 1m / 3.28 ft
  • HDMI 1.4 Cable: 2m / 6.5 ft
  • USB A to USB C 3.0 Cable: 2.2m / 7.2 ft
Back
