JPL Agora USB Video Bar

(0)No Reviews yet
$894.45
SKU: JPL-575-375-001
MANUFACTURER: JPL
MPN: 575-375-001
PRODUCT HIGHLIGHTS:
  • Ultra HD Bluetooth Video Sound Bar
  • 4K UHD 3840 x 2160p
  • 4K Sony glass lens - No optical distortion
  • Magnetic privacy lens cover
  • 4 x stereo duplexed microphones, 10m voice pickup
  • Built in camera in-use LED indicator
  • Compatibility: Bluetooth, USB-A, USB-C
NOTE: Return Restrictions May Apply
Back

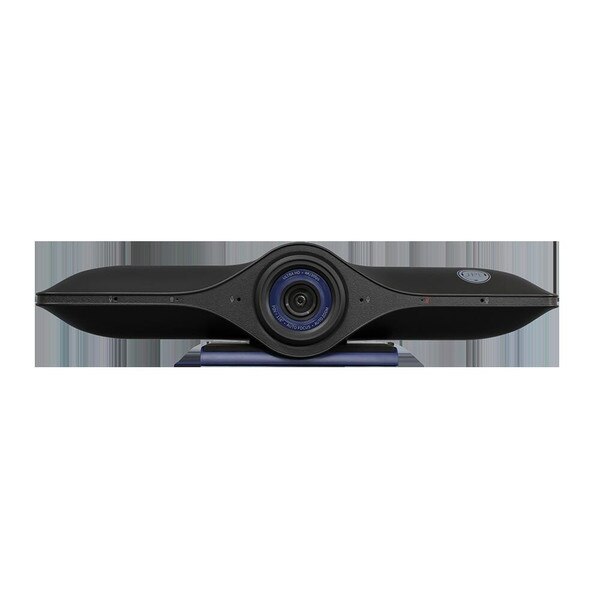

JPL Agora USB Video Bar

4K Ultra HD Intelligent All-In-One Video Sound Bar with Intelligent Zoom


DESCRIPTION:

An impressive conference room video sound bar with AI powered Intelligent Zoom, four stereo duplexed microphones and two all-range speakers, coupled with a bluetooth remote control and a magnetic privacy cover, this video sound bar is a must for all conference rooms.


The JPL Agora video sound bar is simple to connect using the USB and power cable provided. The USB cable offers both USB-A and USB-C connectors, giving the option to connect to either USB-A or USB-C devices. The JPL Agora is designed with our plug and play software last approach. No software or downloads are needed on installation.


The JPL Agora includes a 16 step intelligent zoom. The camera uses intelligent AI to automatically detect who’s in the room and intelligently adjusts the picture to focus on them. This feature can be turned on and off via the Bluetooth remote control.


FEATURES:
  • 4K UHD 3840 x 2160p
  • Intelligent 16 step auto zoom, powered by AI - lens moves to focus on the people speaking in the room
  • 2 x High power all-range speakers
  • 4K Sony glass lens - No optical distortion
  • Magnetic privacy lens cover
  • 4 x stereo duplexed microphones, 10m voice pickup
  • Built in camera in-use LED indicator, power on/off LED indicator, microphone mute LED indicator
  • Compatible with all computers (Mac /PC) and softphones, and is designed to work straight out of the box
  • Universal folding desk mount
  • 116° Field of view

Click here for return policy information.


Back

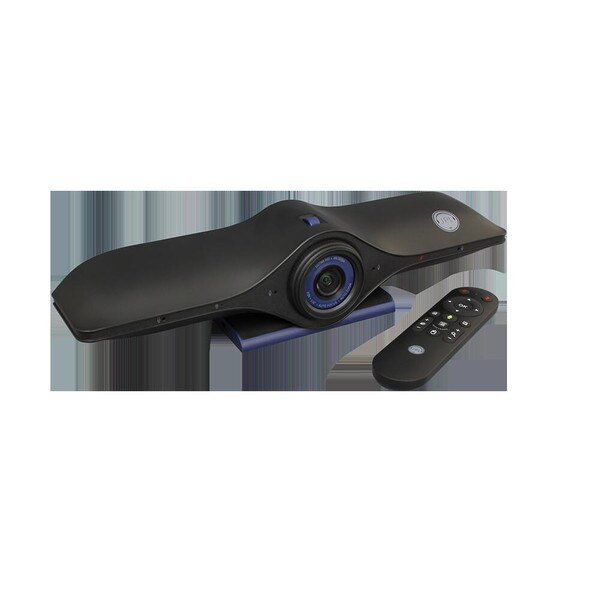

JPL Agora, Bluetooth remote control, magnetic privacy lens cover and a USB-A to USB-C adapter
Back
Camera parameters:
  • Total Pixels 8.3 million pixels - 4K resolution
  • Focus Mode Fixed Focus
  • Aperture F/No. =2.5 ±5%
  • Image Colour 24 Bit
  • Maximum Effective Pixel 3840 x 2160
  • Output Image Format MJPG and YUY2
  • Field of view D=116° H=107° V=74°
  • Intelligent Zoom 16 step, 3 x digital zoom
  • Minimum Illumination 0.5 Lux
  • Exposure Automatic Exposure (AE)
  • White Balance Auto White Balance (AWB) Dynamic Black Level Calibration (ABLC)
  • Resolution @ 30fps 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 480
    • Microphone parameters:
  • MIC Specification 4 x digital microphones
  • SNR ≥65.5dB
  • Sensitivity -26dB Fs
  • Far-field voice pick-up distance 0-10 meters
  • Horizontal voice pickup Horizontal 180°
  • Communication mode Full duplex
    • Speaker parameters:
  • Speaker Specification 2 x ø40.0mm x 28.0mm
  • Power 3W*2
  • Impedance 4Ω
  • Frequency Range 20Hz~20KHz
  • Distortion 5% Max
    • Bluetooth parameters:
  • Bluetooth Standard Bluetooth 4.2/EDR/BLE
  • Frequency 2400 ~ 2480MHz
  • TX Power 4±1.5dBm (typical)
  • RX Sensitivity -85dBm (typical) π/4 DQPSK
  • Operating Systems Windows; Linux; Android
  • Operating Distance 10 meters
    • Other parameters:
  • Interface type USB 2.0 Type-A or USB Type-C
  • Voltage DC 12V < 2000mA
  • OS Support Win 2000/XP/Vista/Win 7/Win 8/Win 10, Win CE with UVC, Linux with UVC (above Linux - 2.6.26) Mac OS X 10.4.8 or later, Android 4.0 with UVC
    • Back
